Šviesos greičio matavimo prietaisas (230 V, 50/60 Hz)
Šviesos greičio matavimo prietaisas (230 V, 50/60 Hz)
Kodas: 3B Scientific 1000882Kaina 119790 € su PVMPrekę turime sandėlyje. Užsakius ir apmokėjus šiandien iki 14 val., pristatytume kitą darbo dieną.
Šiuo metu prekės nėra sandėlyje. Numatomas pristatymo laikas nurodytas žemiau.
Pateikus užsakymą, susisieksime su Jumis ir informuosime apie tikslų numatomą užsakymo pristatymo laiką.
GamintojasPristatymo laikas3-6 savaitės-
Informacija apie prekę Prekės kodas 1000882 [U8476460-230] Svoris1.644 kg Ženklas 3B Scientific Speed of Light Meter (230 V, 50/60 Hz)
Equipment set for determining the speed of light thanks to electronic run-time measurement.
Comprises a compact housing containing a transmitter emitting short LED pulses, a photo receiver and a calibrated, oscillating quartz generator producing chronologically precise square-wave pulses. Emitted light pulses are returned by an internal reflector and by a triple-prism reflector placed a long distance from the light source. The returning light signals are then superimposed on the original signal. A dual-channel oscilloscope is used to measure the time difference between the two signals. The speed of light can be calculated from this difference and the distance to the triple-prism reflector.
The triple-prism reflector can be installed by eye without the need for complex adjustments

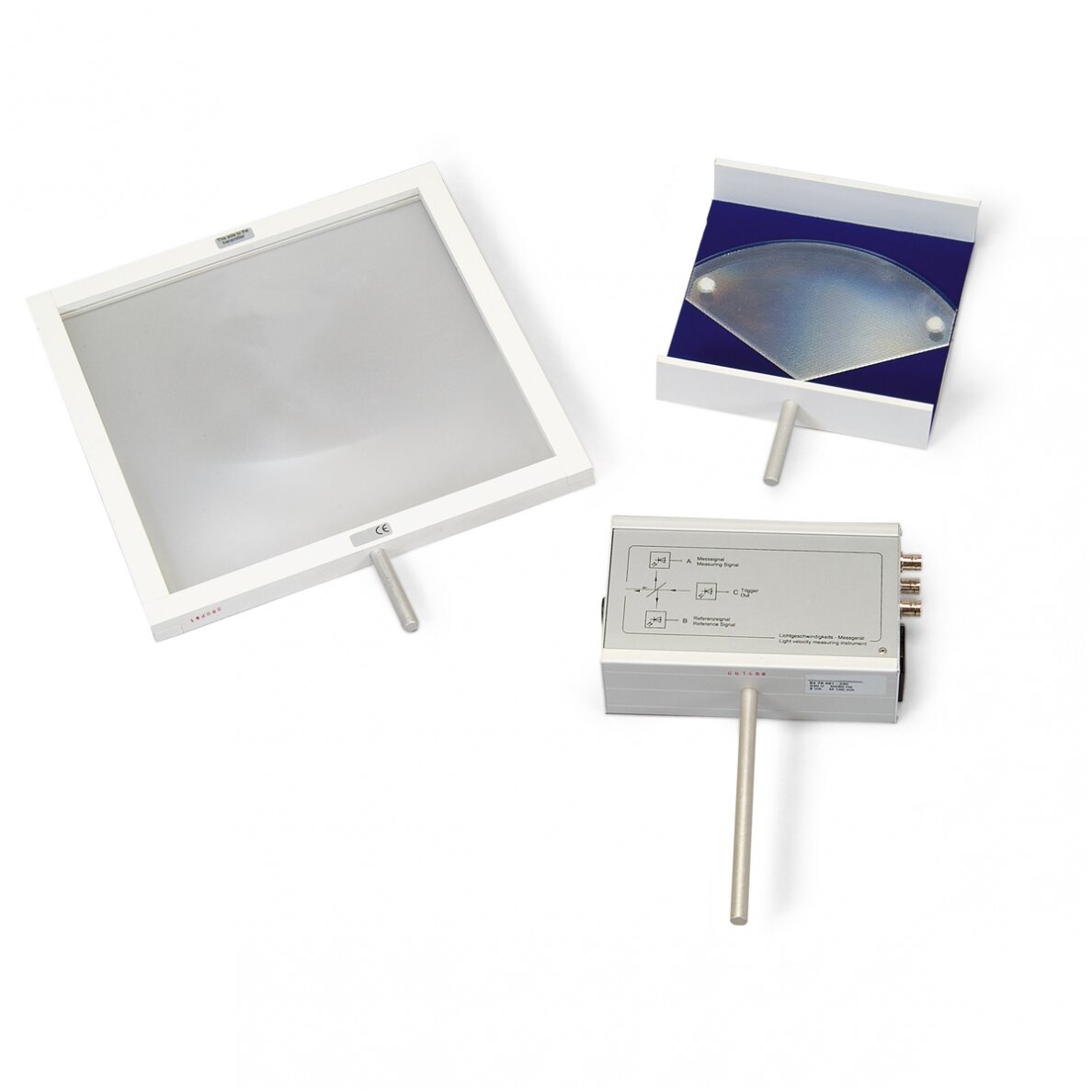

Contents:
1 Control unit with a transmitter, receiver and integrated power supply unit
1 Fresnel lense on shaft
1 Triple-prism reflector on shaft
3 HF cables, 1 m
Additionally required:
Optical Bench
Optical Rider (2x)
Stand Equipment
