Stirlingo variklis, D modelis
Stirlingo variklis, D modelis
Kodas: 3B Scientific 1000817Kaina 89576 € su PVMPrekę turime sandėlyje. Užsakius ir apmokėjus šiandien iki 14 val., pristatytume kitą darbo dieną.
Šiuo metu prekės nėra sandėlyje. Numatomas pristatymo laikas nurodytas žemiau.
Pateikus užsakymą, susisieksime su Jumis ir informuosime apie tikslų numatomą užsakymo pristatymo laiką.
GamintojasPristatymo laikas3-6 savaitės-
Informacija apie prekę Prekės kodas 1000817 [U8440450] Svoris2.097 kg Ženklas 3B Scientific Stirling Engine D
Experiment topics:
• Operation of a Stirling engine as a classical heat-engine
• Measurement of the no-load (idling) rate of rotation as a function of the heat input
• Recording and evaluating a pV diagram

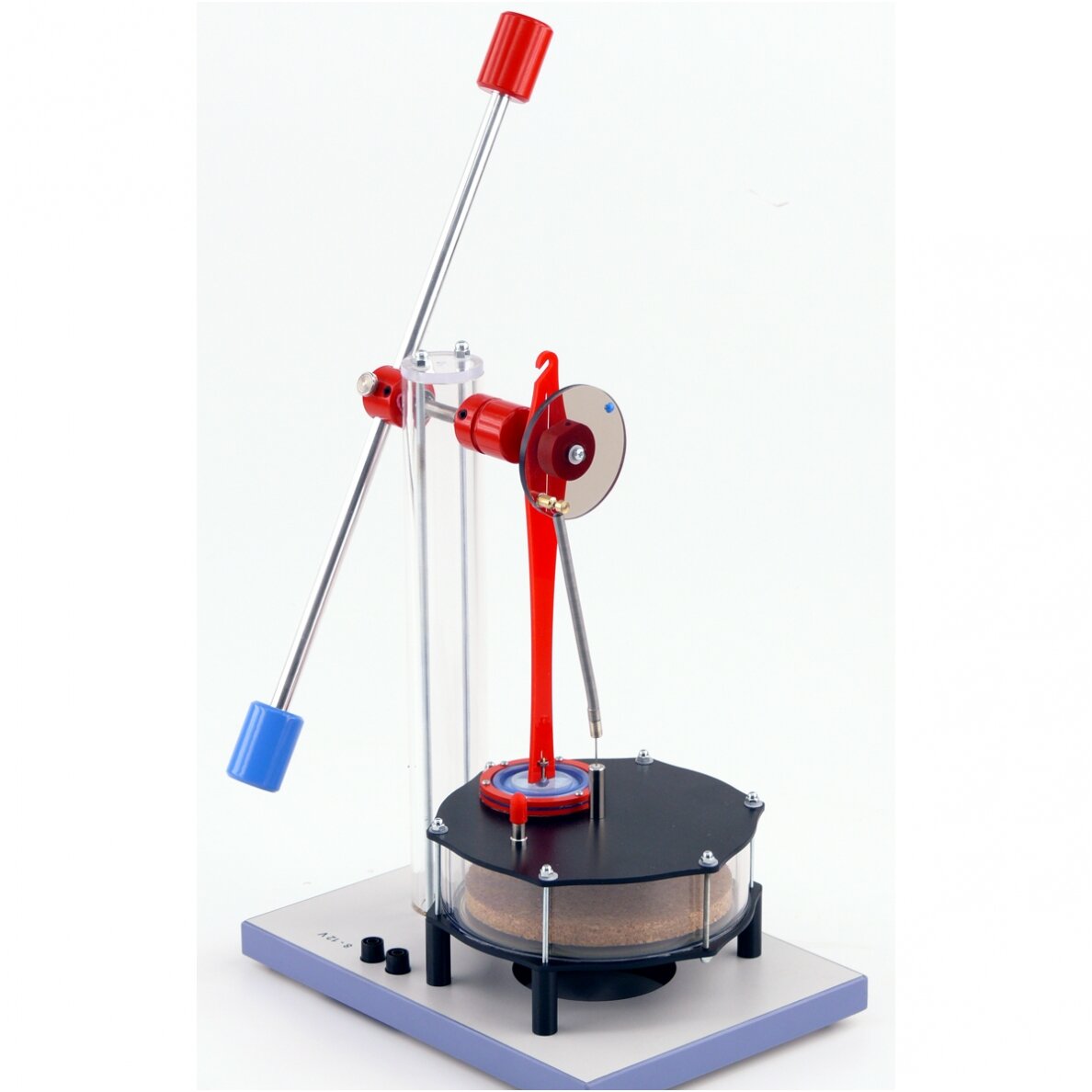

A functional model of a Stirling engine based on an idea by Professor Wilke optimised for demonstrating to students the conversion of thermal energy into mechanical energy and the operation of a thermal engine, as well as investigating the Stirling cycle.
The interplay between the displacement piston and the power piston can be seen especially clearly at a low rate of rotation. In this version the displacement piston moves discontinuously, with a dwell time during the heating of the working medium (air) and a second dwell time during its cooling. This offers a clearer demonstration of the ideal Stirling cycle than is possible with continuous piston movement.

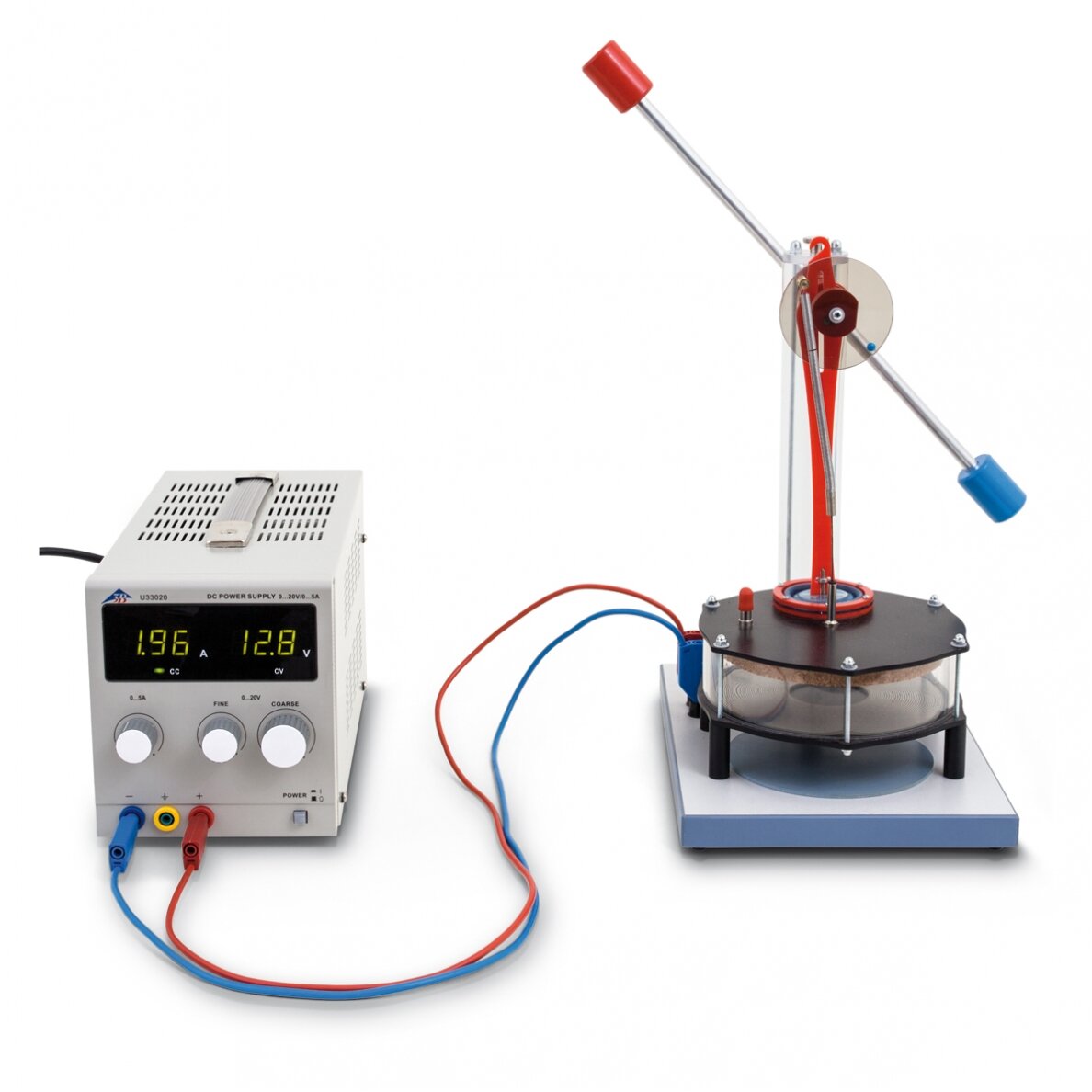

The heat source can be provided by an integrated electric hotplate, a candle flame, or focused radiation from the sun or from a lamp. In the latter case the direction of rotation will depend on whether the heat is applied from above or from below.
For recording pV diagrams, the pressure can be measured via a rubber hose connection on the power cylinder, and the volume can be measured by attaching a thread to the power piston to follow its movement.
Heater voltage: 8 – 12 V, 1.5 A
Gas volume: 330 cm³ – 345 cm³
Flywheel rod: 400 mm
Dimensions without flywheel rod: 260×185×330 mm³
Weight: 2.2 kg
