Pelterio šilumos siurblys

  • Pelterio šilumos siurblys

    Kodas: 3B Scientific 1020769
    Kaina 49779  su PVM

    Prekę turime sandėlyje. Užsakius ir apmokėjus šiandien iki 14 val., pristatytume kitą darbo dieną.

    Šiuo metu prekės nėra sandėlyje. Numatomas pristatymo laikas nurodytas žemiau.

    Pateikus užsakymą, susisieksime su Jumis ir informuosime apie tikslų numatomą užsakymo pristatymo laiką.

    Į krepšelį
    Gamintojas
    Pristatymo laikas
    3-6 savaitės

  • Informacija apie prekę
    Prekės kodas 1020769 [U8557570]
    Svoris 1 kg
    Išmatavimai 24.4 x 16 x 7 cm

    Peltier Heat Pump

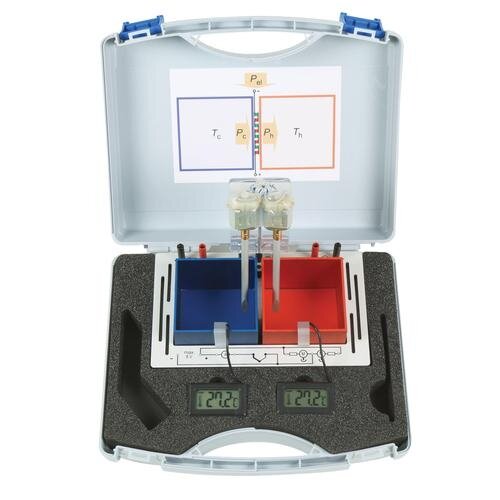

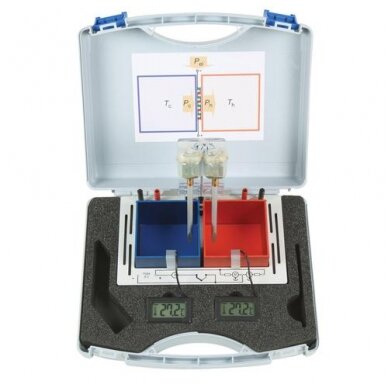

    Working model with aluminium water tanks which are thermally coupled to the surfaces of a Peltier element. When an electric current flows through the Peltier element, heat is transferred between the tanks, causing one of them to cool and the other to heat up. Each of the reservoirs has an electric stirrer to ensure even distribution of the heat. Two digital thermometers indicate the respective water temperatures. Since the specific heat capacity of the system is known, it is possible to determine the power involved in heating and cooling and for a comparison to be made with the electrical power supplied. The system is supplied in a handy transport case which also ensures sufficient thermal insulation from the surroundings.

    Peltier element:
    Supply voltage: 5 – 8 V
    Current consumption at 8 V: 2.5 – 3.5 A
    Surface area: 40x40 mm²
    Thickness: 3.7 mm
    Water tanks:
    Volume: 200 ml
    Weight: 105 g
    Stirrer:
    Current consumption: 100 mA approx.
    Carrying case:
    Dimensions: approx. 244x160x70 mm³
    Weight: approx. 920 g

    Experiment Topics:
    • Peltier heat pump in symmetrical and asymmetrical operation
    • Recording of temperature over time during pumping and settling phases
    • Heating, cooling and electrical power, power coefficient, efficiency
    • Seebeck coefficient
    • Peltier effect, Joule losses, heat reflux due to the conduction of heat by Peltier element
    • Heat transfer and thermal conduction coefficients
    • How the thermal voltage and operating voltage depend on the temperature difference
