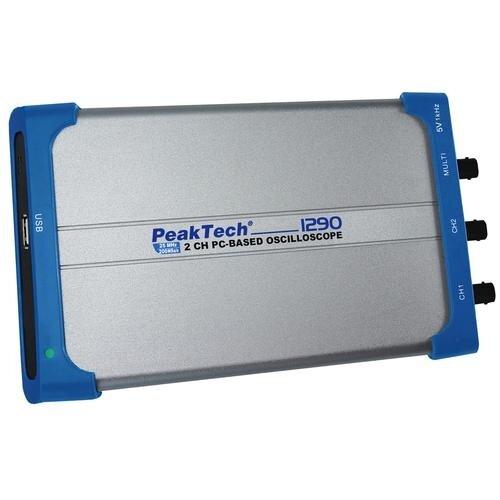

PC oscilografas, 2x25 MHz
PC oscilografas, 2x25 MHz
Kodas: 3B Scientific 1020857Kaina 27286 € su PVMPrekę turime sandėlyje. Užsakius ir apmokėjus šiandien iki 14 val., pristatytume kitą darbo dieną.
Šiuo metu prekės nėra sandėlyje. Numatomas pristatymo laikas nurodytas žemiau.
Pateikus užsakymą, susisieksime su Jumis ir informuosime apie tikslų numatomą užsakymo pristatymo laiką.
GamintojasPristatymo laikas3-6 savaitės-
Informacija apie prekę Prekės kodas 1020857 [U11830] Svoris 0.28 kg Ženklas PeakTech Gamintojo kodas: 1020857
PC Oscilloscope 2x25 MHzAdvantages:
- Greatest possible safety for users and computer systems thanks to galvanically isolated USB interface
- Mathematical functions +, -, *, /, inversion and FFT implemented
- 20 automatic measurement modes
- Powerful PC software for acquisition of data and for control
By connecting the equipment to a PC, you obtain an extensively equipped digital storage oscilloscope with the additional advantage that the measurement data is saved and can, for example, be further analysed using fast Fourier transform (FFT) analysis.
Includes two probes (1:1, 10:1), a USB connecting cable, two BNC cables, operating instructions and software CD for Windows® XP/Vista/7/8
Channels: Two
Band width: 25 MHz
Sample rate per channel: 100 MS/s
Operating modes: CH1, CH2, XY
Input:
Input coupling: DC, AC, GND
Input impedance: 1 MΩ ±2% ll 10 pF ±5 pF
Input voltage: 0 – 400 V DC or ACpp
Multi-input: Sync., in/out, pass/fail, ext. trigger
Vertical:
Deflection coefficient: 2 mV/div. – 50 V/div.
Precision: ± 3%
A/D converter: 8-bit resolution
Horizontal:
Time-base coefficient: 5 ns/div. – 100 s/div.
Sampling range: 0.5 S/s – 200 MS/s
Precision: 100 ppm x reading + 0.6 ns
Measuring mode:
Automatic measurement: Vpp, Vmax, Vmin, Vtop, Vbase, Vamp, Vavg, Vrms, overshoot, pre-shoot, rise time, fall time, +width, -width, +duty, -duty, delay A-B (rising), delay A-B (falling)
Maths functions: +, -, *, /, inversion, FFT
Trigger:
Trigger type: Alternate, Edge, Video, Pulse, Slope
Trigger modes: Auto, Normal, Single
Trigger detection: Sample, peak detect, average
Interfaces:
Memory size: 5000 measurements
Interface: USB 2.0
Power supply: 5 V DC via two USB ports
Software:
Windows®: XP/Vista/7/8
Data export for
further assessment: Formats: bin, txt, csv or xls
Image file for
current screen: Formats: png, bmp or gif
General data:
Dimensions: 170x120x18 mm3 approx.
Weight: 260 g approx.
