Paleidimo priemonė, S modelis
Paleidimo priemonė, S modelis
Kodas: 3B Scientific 1000740Kaina 42592 € su PVMPrekę turime sandėlyje. Užsakius ir apmokėjus šiandien iki 14 val., pristatytume kitą darbo dieną.
Šiuo metu prekės nėra sandėlyje. Numatomas pristatymo laikas nurodytas žemiau.
Pateikus užsakymą, susisieksime su Jumis ir informuosime apie tikslų numatomą užsakymo pristatymo laiką.
GamintojasPristatymo laikas3-6 savaitės-
Informacija apie prekę Prekės kodas 1000740 [U8400930] Svoris0.984 kg Ženklas 3B Scientific Launcher S

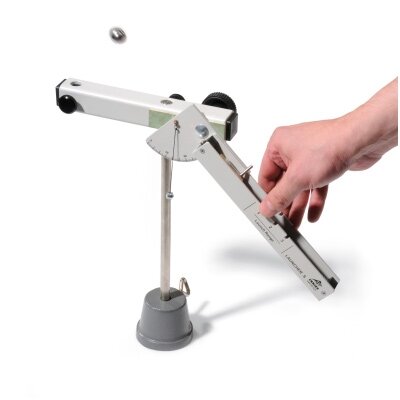

Experimental apparatus for studying vertical and horizontal trajectories as well as trajectories starting at intermediate angles. Also demonstrates the independence of the horizontal and vertical components of motion (for projectiles).
Provides for three different launch velocities. Angle of launch can be adjusted to any arbitrary angle and read off from a protractor scale with a plumb line.
The projectile ball is held in place by a magnet until the moment of launch so that the height of the trajectory is independent of the launch angle. When a projectile is launched, a second ball can be released simultaneously from the other side of the launcher that then descends in free fall. The latter should strike the floor at the same time as the projectile if the launch angle is horizontal.
Launch angle: 0° – 90°
Maximum range: 4 m
Projectile diameter: 16 mm
Projectile weight: 17 g approx.
Diameter : 280 x 90 x 90 mm³ approx.
Total weight: 950 g approx.
