Optikos rinkinys demonstracinei lentai
Optikos rinkinys demonstracinei lentai
Kodas: 3B Scientific 1000604Kaina 56967 € su PVMPrekę turime sandėlyje. Užsakius ir apmokėjus šiandien iki 14 val., pristatytume kitą darbo dieną.
Šiuo metu prekės nėra sandėlyje. Numatomas pristatymo laikas nurodytas žemiau.
Pateikus užsakymą, susisieksime su Jumis ir informuosime apie tikslų numatomą užsakymo pristatymo laiką.
GamintojasPristatymo laikas3-6 savaitės-
Informacija apie prekę Prekės kodas 1000604 [U14600] Svoris3.8 kg Ženklas 3B Scientific Optics Kit for Whiteboard
Experiment topics

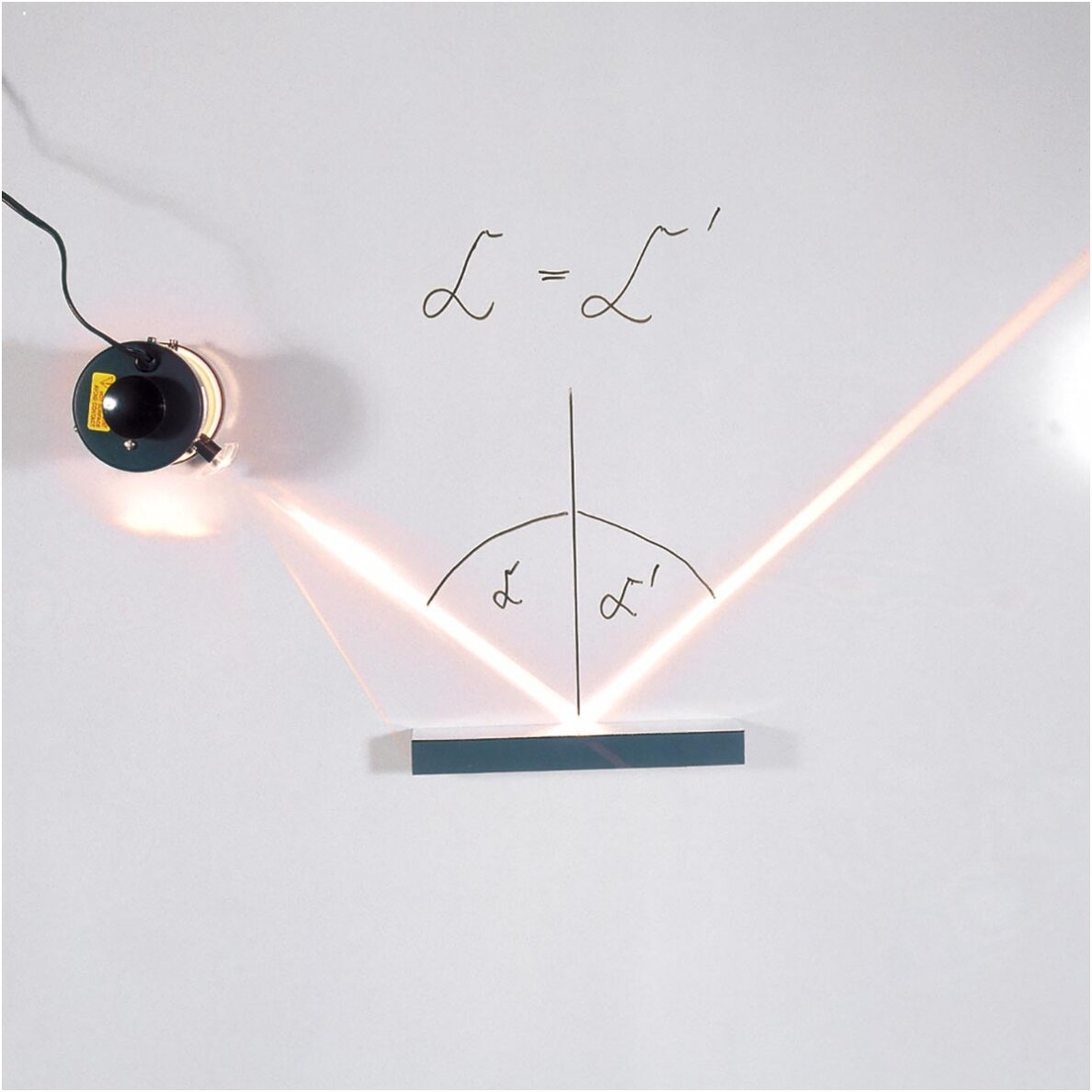

• Laws of reflection
• Laws of refraction
• Total reflection
• Minimum deflection angle for a prism

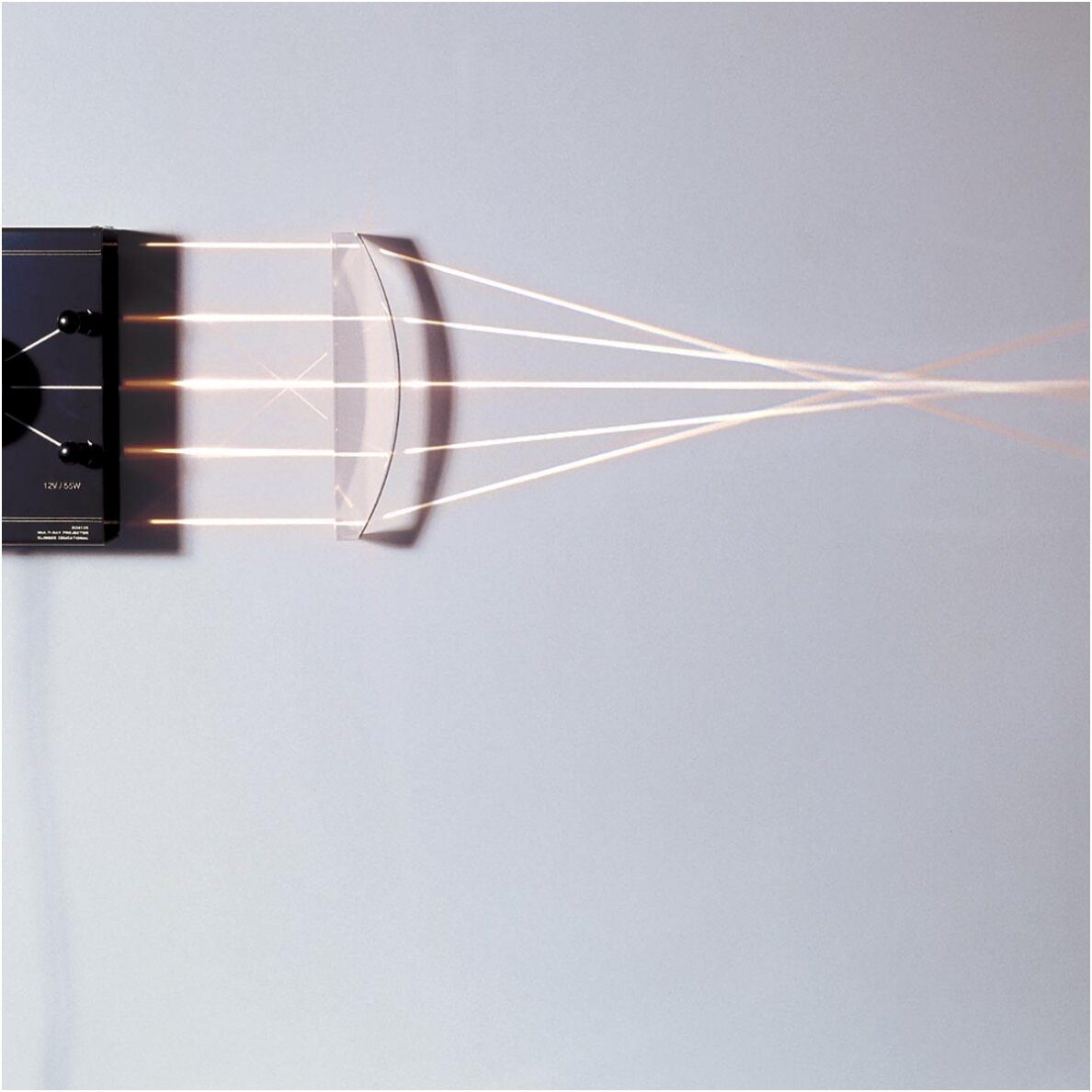

• Focal determination of mirrors and lenses
• Laws of lenses and image errors

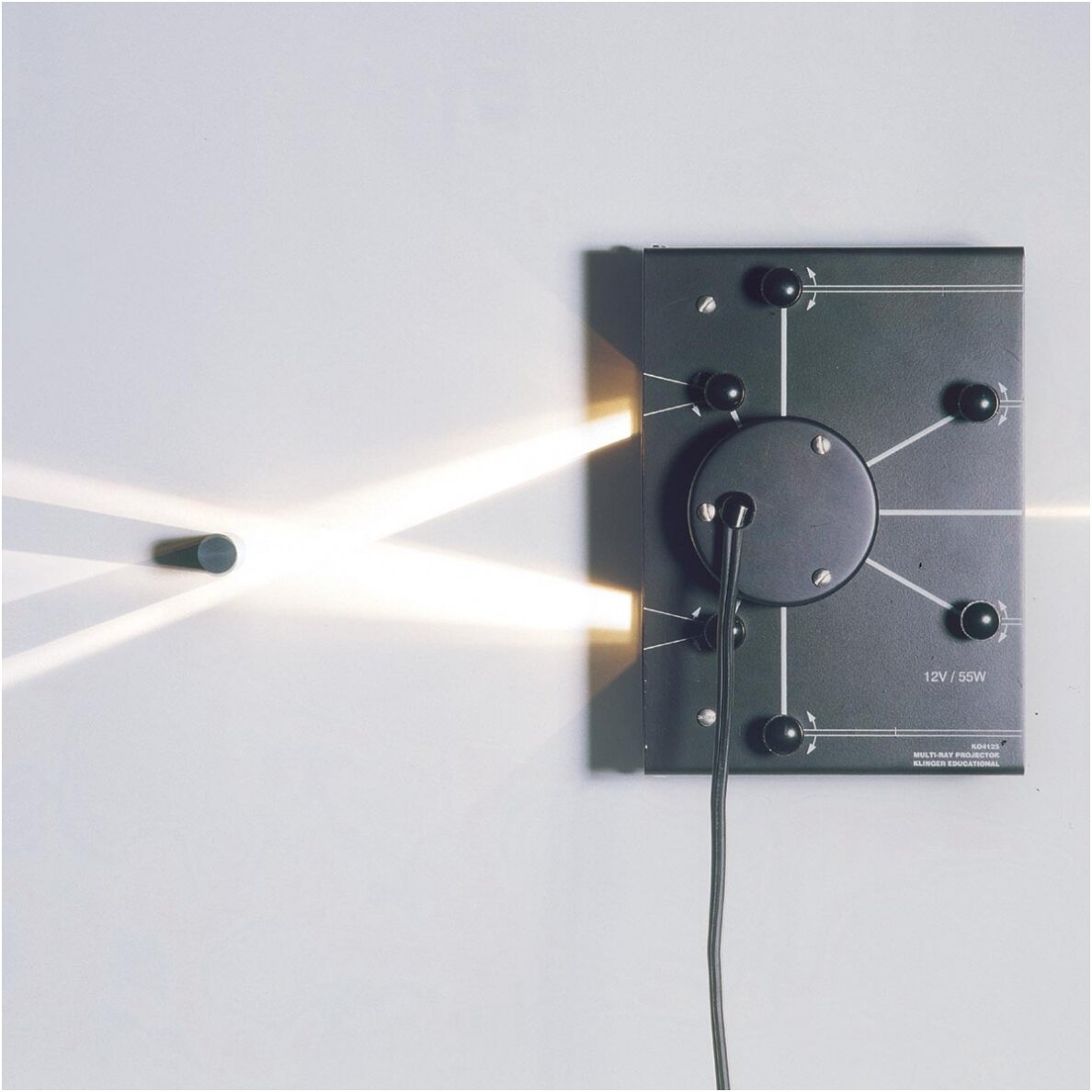

• Shadow-casting

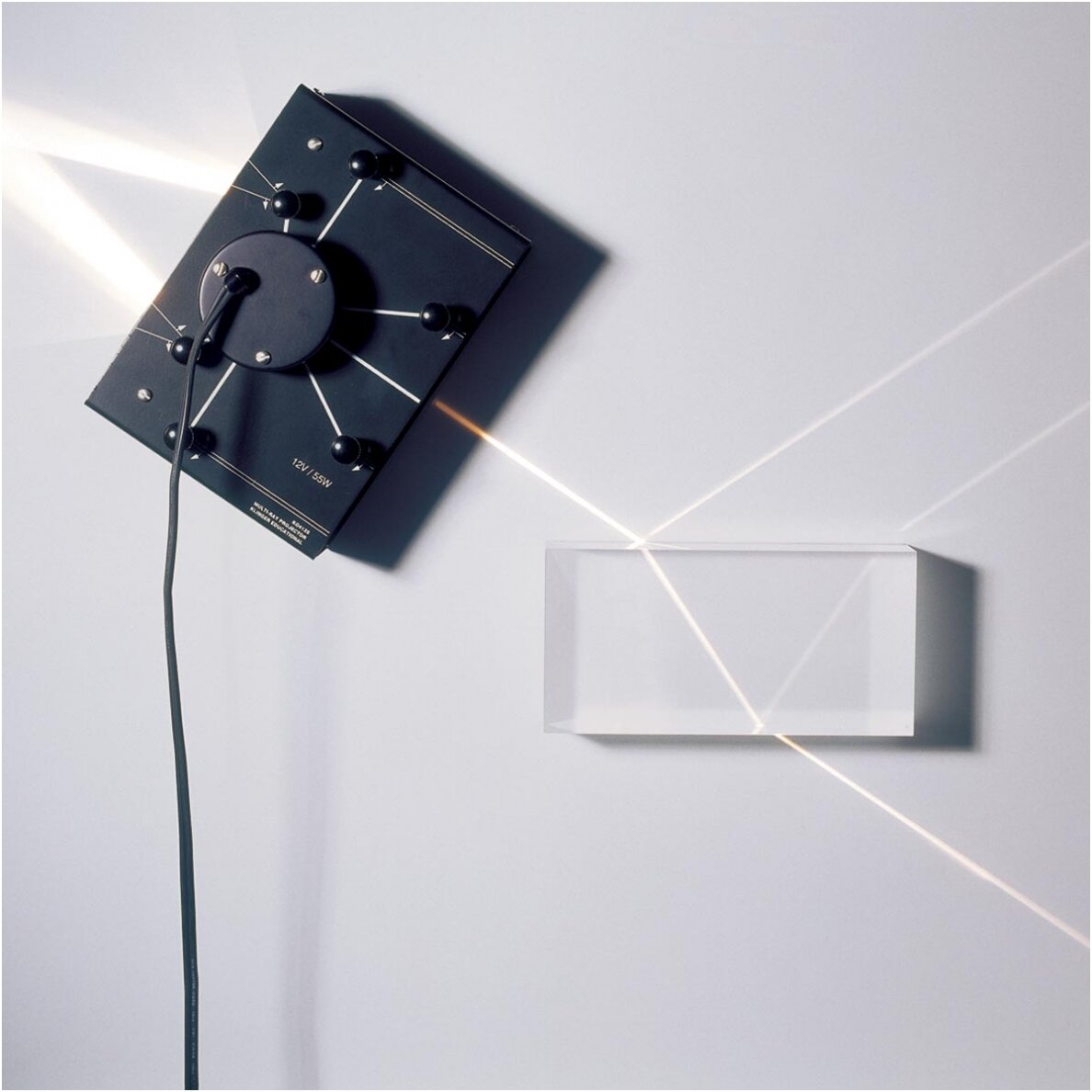

Set of optical components for use in conjunction with a single-beam lamp (U40120) or multiple-beam lamp (U40110) on a white board (U10030 or U10031).
All components are lined with magnetic foil or furnished with a magnet holder and can be easily mounted and aligned on the white board. This apparatus permits a wide range of experiments demonstrating ray optics without the need for a dark room; handwritten notes can be added to provide a clearer explanation.

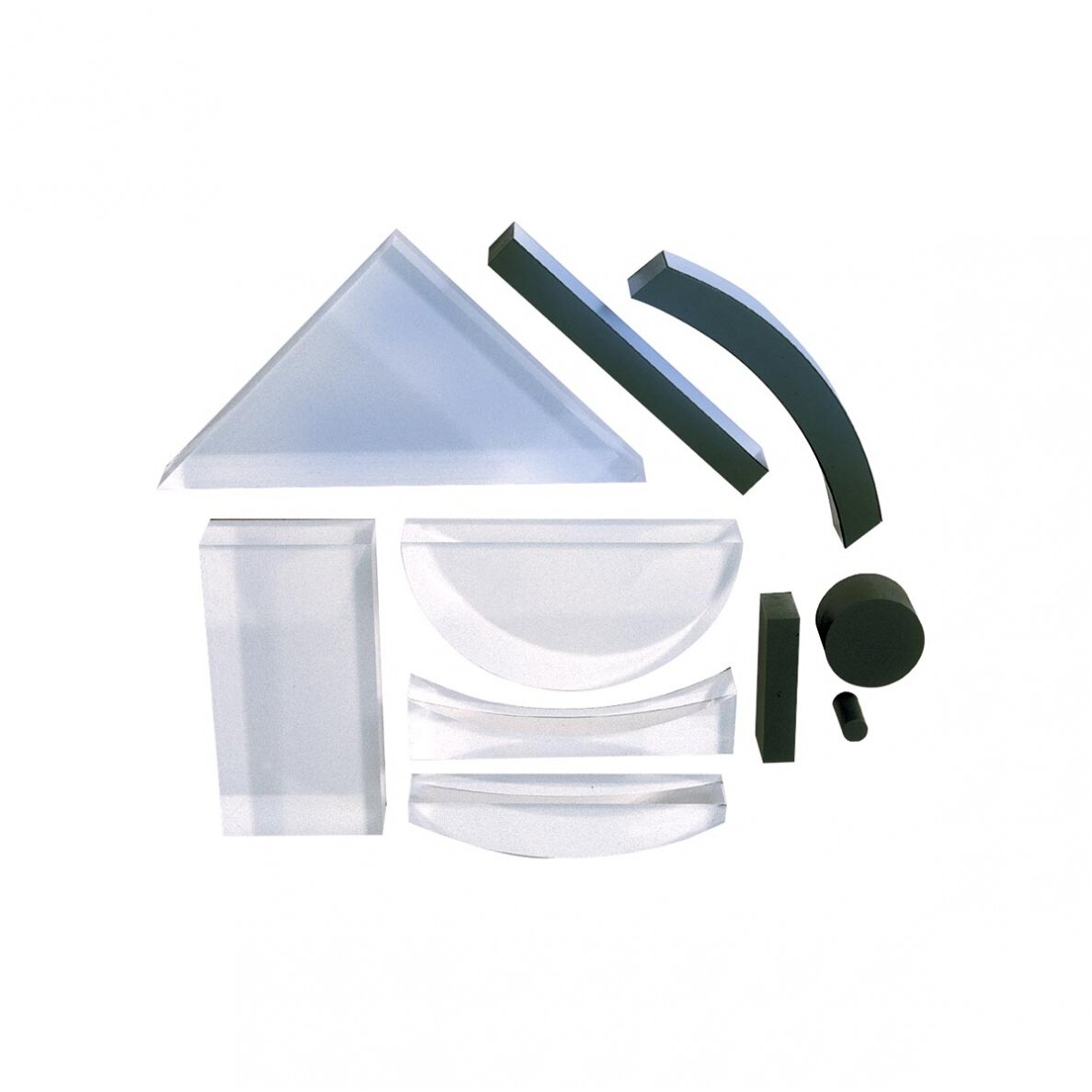

Contents:
Material: Plastic
Mirrors:
U15510 Plane mirror 200x35x35 mm³
U15511 Convex – concave mirror, f = ±100 mm 200x35x35 mm³
Transparent objects:
U15515 Plano-concave lens, f = -400 mm 200x40x35 mm³
U15516 Plano-convex lens, f = +400 mm 200x40x35 mm³
U15517 Plane-parallel plate 200x100x35 mm³
U51518 Semi-circular body, f = +200 mm dia. 200x35 mm²
U15520 Right-angled prism 200x200x35 mm³
Shadow-casting bodies:
U15525 Cuboid 100x20x35 mm³
Cylinder dia. 5x35 mm²
Cylinder dia. 60x35 mm²
